Automatic Electric Cassava Starch Processing Equipment Multifunction
Product Details:
| Place of Origin: | Henan |
| Brand Name: | JingHua |
| Model Number: | Packaging Machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 3100*800*650 mm |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/P, D/A, Western Union, T/T, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Product Name: | Packaging Machine | Quality: | Top Level |
|---|---|---|---|
| Service: | Overseas Installation | Advantage: | High Effective |
| Application: | Food Industry Machinery | Price: | Negotiable |
| Customized: | Pressage Chaud | Processing Type: | Cleaning-milling-packing |
| Highlight: | multifunction cassava starch processing equipment,cassava starch processing equipment,multifunction cassava flour processing machine |
||
Product Description

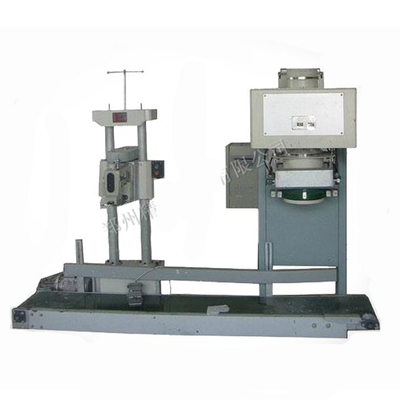

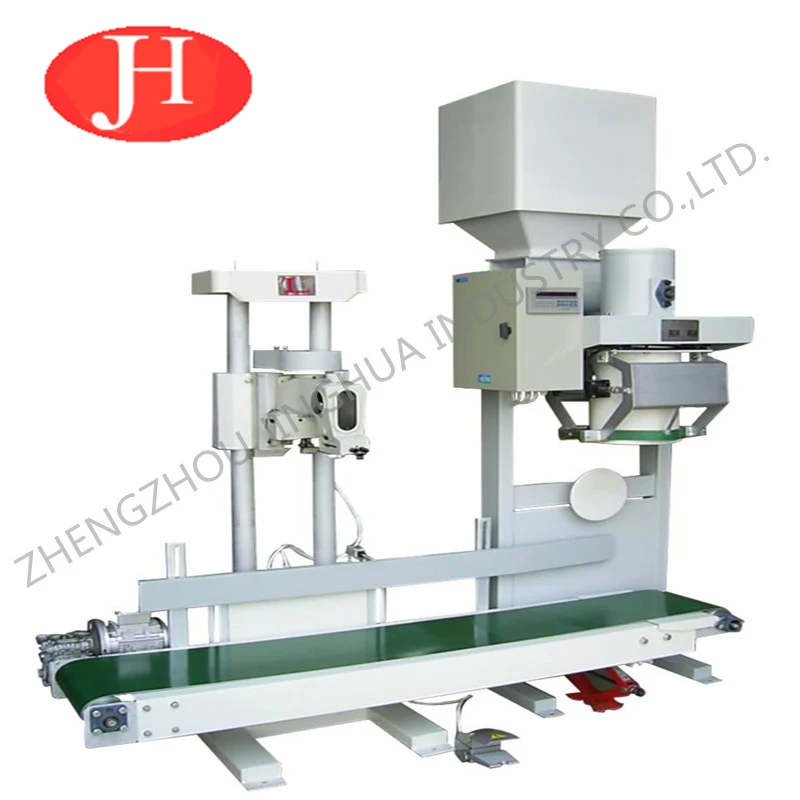

Automatic starch package machine packing range is 5-50 kg . The parts contact with materials are made of stainless steel.The main quantitative packing in the powdery material containing gas mixture material (such as waxy rice noodles, corn starch, potato starch, cassava starch, modified starch, gluten flour, dextrin).Easy to operate and maintenance.
Main technical parameters
|
Specification |
JHTB-5 |
JHTB-25 |
JHTB-50 |
|
Weighing ranges(Kg) |
5~10 |
20~25 |
20~50 |
|
Yield(packets/hour) |
150~600 |
150~500 |
300~400 |
|
Dividing the value(g) |
5 |
10 |
10 |
|
Power(Kw) |
4 |
4 |
4 |
|
Package size(mm) |
1750*1000*2200 3100*800*650 |
1750*1000*2200 3100*800*650 |
1750*1000*2200 3100*800*650 |
|
Total weight(kg) |
550 |
550 |
550 |
Advantages of starch packaging machine
1. A fast, slow, speed, three speed feeding mode, AD processing technology with high speed, anti-interference technology, automatic error correction and compensation technology, accurate measurement, stable and reliable performance.
2. According to different characters of different materials, the pumping, the gas material of gas extraction, convenient packing and transportation and storage bags. Improve food shelf life.
3. For good fluidity material (such as starch) to take a special way of feeding, fast cutting flow system, to ensure that the measurement is accurate,stable and reliable performance.
4. Lift the bag structure to ensure that the packaging vertical fall into the conveyor, reduce labor intensity and improve the working environment.
The working principle of automatic packing machine
The sensor of the packaging machine is subjected to the action of pressure to produce a micro - variable signal, which is processed by the
computer. When the computer is activated by the external work signal, the feeder is controlled to feed the material quickly into the packaging bag.When the fast feeding ration is reached, the fast feeding is stopped, and the cylinder of the vibrating bag vibrates the packing material, and then the optimal feeding department is entered. When the set ration of slow feeding is reached (ration _ drop), stop the slow feeding and loosen the bag holder, etc. Such a cycle of work to achieve automatic quantitative packaging. Press the stop switch if you need to stop working.
Pre-sale service
1. Accept customer consultation and customize products according to customer requirements.
2. Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.
Sale service
1. The company sent technical personnel to the scene of the on-the -spot guidance equipment installation,debugging and training operators.
2. If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.
After-sale service
1. Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2. If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3. Products purchased in our company, we provide one-year warranty and lifelong maintenance service.
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.
Q2. What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line
Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements
Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
