Starch Processing Cassava Grater Machine For Consistent Performance

The Cassava Starch Processing Equipment is an essential part of any Cassava Flour Production Line, designed to efficiently process cassava into high-quality starch. Crafted from durable stainless steel material, this Cassava Starch Machine is built to last and withstand the demands of industrial starch processing. With a customized power configuration, this Cassava Starch Processing Machine can be tailored to meet the specific needs and requirements of your production facility.

This state-of-the-art equipment is specifically engineered for starch processing, ensuring optimal efficiency and output quality. Whether you are producing cassava starch for food, pharmaceutical, or industrial applications, this processing equipment is capable of delivering consistent results. The stainless steel construction not only guarantees hygiene and cleanliness but also provides durability for continuous operation.

The Cassava Starch Processing Equipment is highly versatile, with a customized capacity to suit your production volume. Whether you are a small-scale operation or a large industrial facility, this machine can be configured to meet your processing needs. The flexibility in power options allows you to maximize energy efficiency and productivity based on your operational requirements.

With its focus on starch processing, this equipment is designed to streamline the production process, reducing manual labor and increasing output efficiency. The Cassava Starch Machine is equipped with advanced features to ensure precise control over the processing parameters, resulting in consistent starch quality. This level of automation not only improves productivity but also minimizes the margin of error in the production process.

Key Technology & Innovation Potions

1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.
2. High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.
3. Rotor is calibrated with international advanced dynamic-balance instrument, meeting G1 standard.
4. Components(bearings for example) are imported from Europe with longer service life.

Main technical parameters

Model	DCM8435	DCM8450	DCM8465	DCM1070
Main shaft rotating speed(r/min)	2100	2100	2100	1470
Drum diameter(mm)	Φ840	Φ840	Φ840	Φ1100
Drum width(mm)	350	500	650	700
Power(Kw)	110	160	200	250
Capacity(t/h)	20-23	30-33	35-40	40-45
Dimension(mm)	2170x1260x1220	2170x1385x1250	2170x1650x1380	3000x1590x1500



Structure introduction

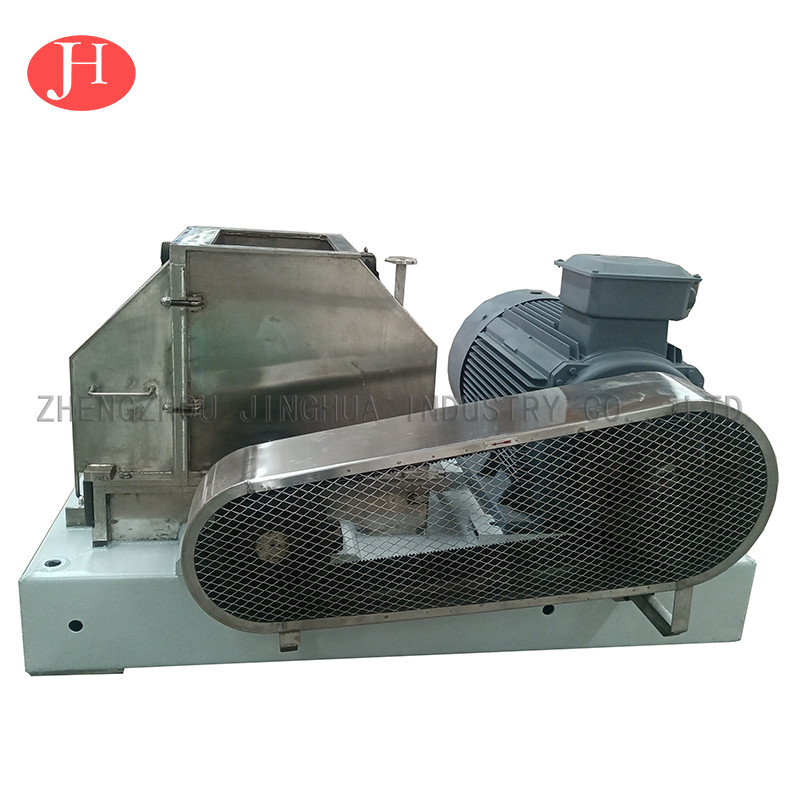

Complete machine consists of rotor, rasping blade, engine base, upper cover, side cover, bearing base, gearing, motor, etc.
1. Engine base props up all components, which rotor and bearings are all fixed on.
2. Rotor is made of special stainless steel, uniform grooves on the surface to install saw blade.
3. Saw blade is comprised of 2 stainless-steel layer with locating pin and a saw blade.
4. 2 combined rasping blade are equipped on both side of rotor, which could achieve rotor two-way rotating and crests higher crushing rate.

Real Application Case

Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .

Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.

After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.

Packing : wooden cases/ customized

Delivery :25days after receiving pre-payment (on time according to contract strictly)

Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: Zhengzhou jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3:Where is your factory located? How can I visit there?
A: Our add: Zhengyun Road and Guanggu Road intersection , Guangwu Town , Zhengzhou City , Henan Province , China.

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
