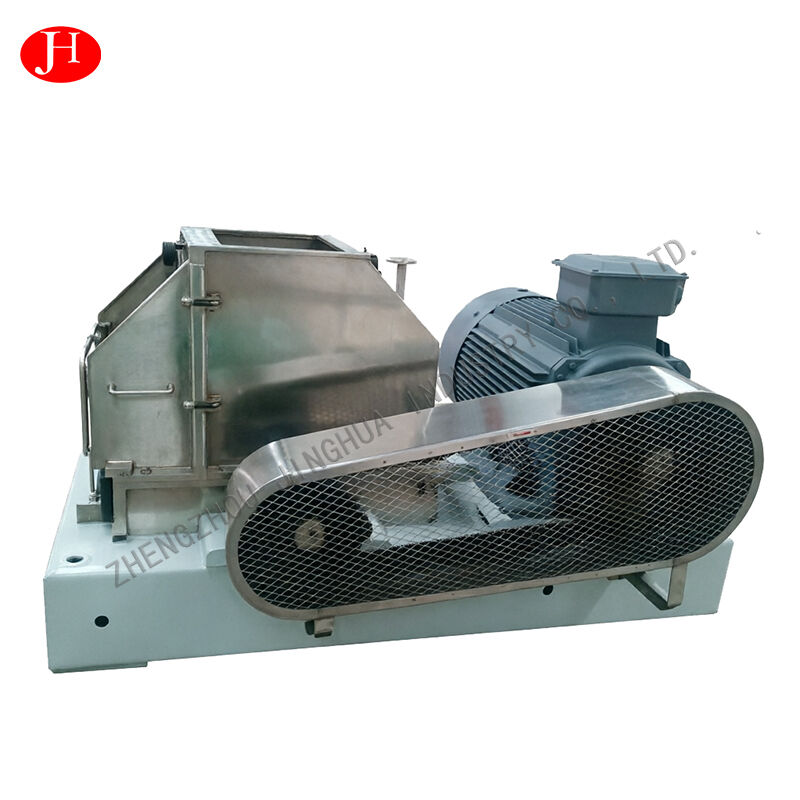

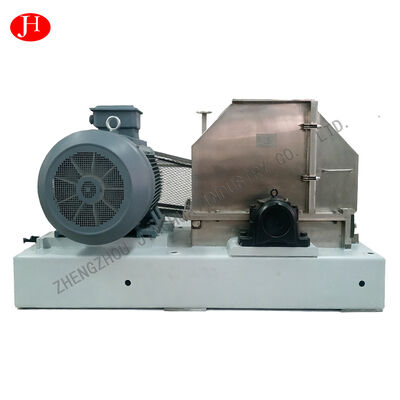

Large Capacity Cassava Starch Rasper Cutting Machine Cassava Rasper Machinery
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JINGHUA |
| Model Number: | Rasper |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/P, D/A, Western Union, T/T, |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Typ: | Grain Processing Equipmente | Automationlevel: | Semi-automatic/Automatic |
|---|---|---|---|
| Aftersalesservice: | Technical Support And Installation Guidance | Visit Factory: | Welcome Warmly |
| Power Source: | Electricity | Machine: | Cassava Mill Machine |
| Porduct Name: | Centrifuge Sieve | Applicable Industries: | Modified Starch Packing Machine |
| Customed: | Yes | ||
Product Description
Develop Rasper Sweet Potato Starch Equipment Cassava Starch Processing Equipment
Rasper is our company's high-tech products and patented technology products.The rasper breaks the raw material at a high speed, destroys the
fiber structure and makes the starch particles free.Widely used in potato starch and cassava starch processing to crash and rasp raw materials.
Key Technology & Innovation Potions
1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.
2. High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.
3. Rotor is calibrated with international advanced dynamic-balance instrument, meeting G1 standard.
4. Components(bearings for example) are imported from Europe with longer service life
5. Unique sieve-tension gear makes disassembly easy.
6. Saw Blade is manufactured with special steel by special process, with higher hardness and wear resistance.
7. Rasping bulk is cast of high-chromium iron, hardness reaching HRC60, having excellent wear resistance.
8. Unique drum groove and layering instrument design benefits saw blade changing.
Main technical parameters
|
Model |
DCM8435 |
DCM8450 |
DCM8465 |
DCM1070 |
|
Main shaft rotating speed(r/min) |
2100 |
2100 |
2100 |
1470 |
|
Drum diameter (mm) |
Φ840 |
Φ840 |
Φ840 |
Φ1100 |
|
Drum width (mm) |
350 |
500 |
650 |
700 |
|
Power (Kw) |
110 |
160 |
200 |
250 |
|
Capacity (t/h) |
20-23 |
30-33 |
35-40 |
40-45 |
|
Dimension(mm) |
2170x1260x1220 |
2170x1385x1250 |
2170x1650x1380 |
3000x1590x1500 |
The working principle of rasper
The material enters into the body of the file mill shell through the upper entrance, and is broken by the impact, shear and grinding effect of the sawblade moving at high speed. The lower part of the rotor is equipped with a screen screen. The material smaller than the size of the screen hole is discharged through the screen plate, and the particles larger than the size of the screen hole are blocked and remain on the screen plate to continue to be hit and grinder by the saw blade.
Q1:Can you provide detailed parameters and drawings of the equipment?
A:Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.
Q2:How long is the warranty period of the equipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.
Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.
Q4:Are your products can be assured ?
A:Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5:If we show you our layout of factory, can you help us to design the whole process line?
A :Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6:If we have samples of new products, can you help us to analysis and design the machine?
A:Yes, Our technical department can help you to analysis, design and test the new products you offered.
