Customized Fufu Processing Machine Rasper , Cassava Grinding Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DCM8435 DCM8450 DCM8465 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre-payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Application: | Cassava Grinding Machine | Customized: | Customized |
|---|---|---|---|
| Condition: | New | Installation: | Yes |
| Maintain: | Yes | Warranty: | 12 Months |
| Capacity: | 35 T/h | Power: | 110 Kw |
| High Light: | fufu making machine,fufu processing equipment |
||
Product Description
Customized Rasper Machine Cassava Grinding Fufu Processing Machine
Product Description
Key Technology & Innovation Potions
1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.
2. High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.
3. Rotor is calibrated with international advanced dynamic-balance instrument, meeting G1 standard.
4. Components(bearings for example) are imported from Europe with longer service life.
Structure introduction
Complete machine consists of rotor, rasping blade, engine base, upper cover, side cover, bearing base, gearing, motor, etc.
1. Engine base props up all components, which rotor and bearings are all fixed on.
2. Rotor is made of special stainless steel, uniform grooves on the surface to install saw blade.
3. Saw blade is comprised of 2 stainless-steel layer with locating pin and a saw blade.
4. combined rasping blade are equipped on both side of rotor, which could achieve rotor two-way rotating and crests higher crushing rate.
Main Technical Parameters
| Model | DCM8435 | DCM8450 | DCM8465 | DCM1070 |
| Main shaft rotating speed(r/min) | 2100 | 2100 | 2100 | 1470 |
| Drum diameter(mm) | Φ840 | Φ840 | Φ840 | Φ1100 |
| Drum width(mm) | 350 | 500 | 650 | 700 |
| Power (Kw) | 110 | 160 | 200 | 250 |
| Capacity(t/h) | 20-23 | 30-33 | 35-40 | 40-45 |
| Dimension(mm) | 2170x1260x1220 | 2170x1385x1250 | 2170x1650x1380 | 3000x1590x1500 |

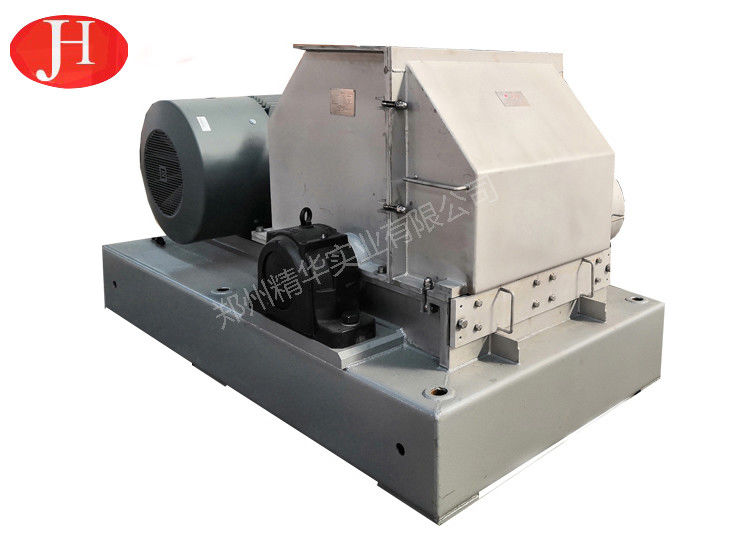

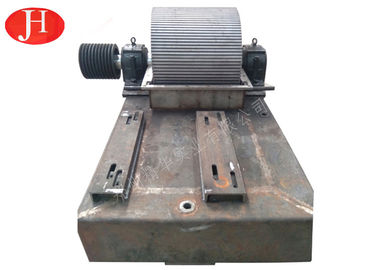

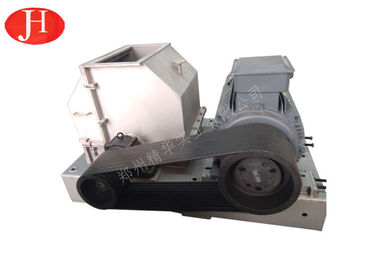

Product Show
Our Service
Pre-sale service
1. Accept customer consultation and customize products according to customer requirements.
2. Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.
Sale service
1. The company sent technical personnel to the scen of the on-the -spot guidance equipment installation,debugging and training operators.
2. If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.
After-sale service
1. Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2. If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3. Products purchased in our company, we provide one-year warranty and lifelong maintenance service.
