Starch Sifter Machine Starch Production Line Easy Operation High Efficiency
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | GDS4*10*83 GDS2*10*83 GDS1*10*83 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Application: | Starch Sieve Making Machine | Energy: | Electric |
|---|---|---|---|
| Capacity: | 11 T/h | Operation: | Vibration Sifter Machine |
| Installation: | Yes | Color: | Blue And White |
| Weight: | 1520 Kg | Power: | 1.5 Kw |
| Highlight: | potato starch production line,cassava starch processing line |
||
Product Description

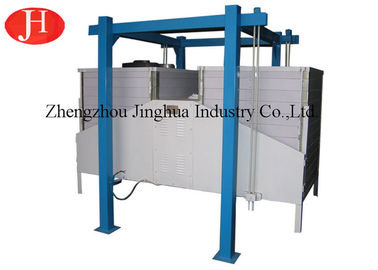

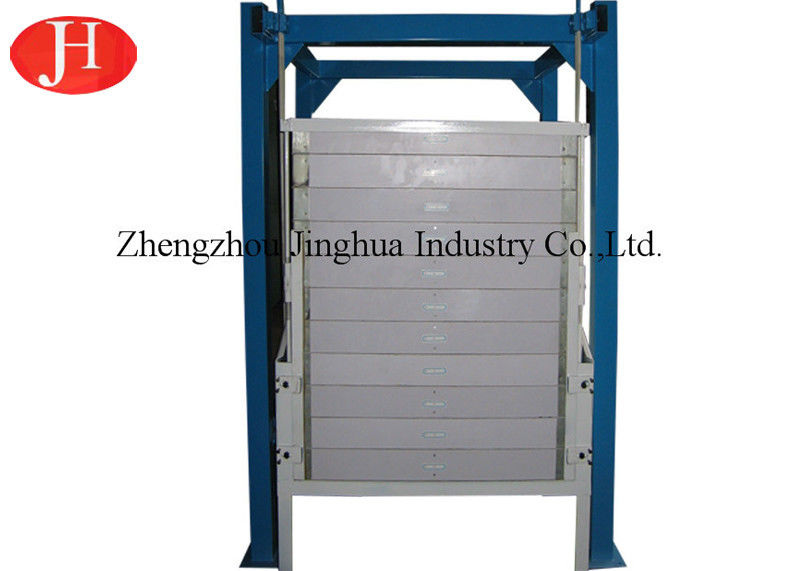

Description of high efficiency starch sifter

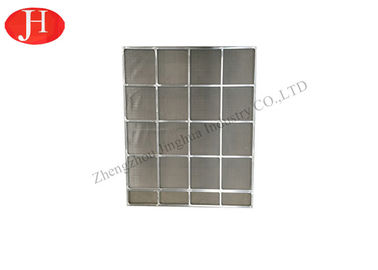

Zhengzhou Jinghua starch sifter is widely used in starch industry and it is proved the best sifter in starch sifting. The sieve body is composed of many layer sieve lattices and the sieve cases have two kinds of material: wooden and aluminum alloy. Each layer connects closely as the form of step in the rim to ensure good sealing performance and convenient maintainance. Suspender is made from glass fiber reinforced plastic with durable life.
Working Principle
The machine is composed of two main parts: the mild frame mounted with clamps for the flexible suspension rods, floor plates for mounting and the mild steel box section for the sieve frames with upper clamping by means of a metals frame and clamping pressure micrometric screws.
The drive unit with counter balance weight, with motor, pulley, v-belt is mounted under the cabinet box section, adjustable to suit different applications. Material is fed into the top section and by the machines circular motion, the fine material moves through the sieve mesh and is discharged out each sieve to outlets, while the course materials over tails and sent to separate outlets.
Main Technical Parameters
| Model |
Bin (piece) |
Sifter area (㎡) |
Capacity (t/h) |
Power (kw) |
Weight (kg) |
Dimension (mm) |
| GDS4×10×83 | 4 | 18 | 10～11 | 2.2 | 1520 | 2310×2200×2400 |
| GDS2×10×100 | 2 | 10 | 6～8 | 1.5 | 900 | 2600×1650×2220 |
| GDS2×10×83 | 2 | 8.5 | 5～6 | 1.5 | 850 | 2120×1400×2220 |
| GDS1×10×100 | 1 | 6.6 | 3～4 | 1.1 | 750 | 1610×1610×1800 |
| GDS1×10×83 | 1 | 4.2 | 2.5～3 | 0.75 | 600 | 1400×1400×1800 |
Our Service
Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout .
Sale service
1. Recommending engineering conditions required for installation of the machine.
2. Communicating the manufacturing progress of machines with customer in time.
3. Project planning and design services.
After-sale service
1. Training of equipment maintenance and operating personally.
2. Installation and commissioning of equipment until everything is functional.
3. One year warranty and providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to serve machinery overseas.
