Vacuum Filter 4Kw Potato Starch Production Line
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | KLG12 KLG20 KLG24 KLG34 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Vacuum Filter | Useful Life: | 20 Years |
|---|---|---|---|
| Condition: | New | Customized: | Customized |
| Energy: | Electric | Power: | 4 Kw |
| Line: | Potato Starch Processing Line | Warranty: | 12 Months |
| Highlight: | 4Kw potato starch production line,potato starch vacuum filter |
||
Product Description

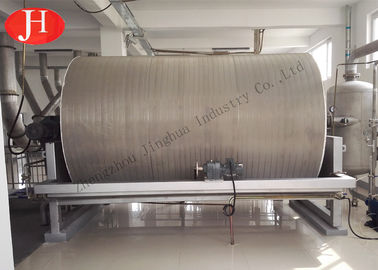

Vacuun Filter Potato Starch Milk Dewatering Making Machine Potato Starch Production Line
Introduction of vacuum filter
Zhengzhou Jinghua Industry Vacuum filter combines the latest technology and years experience into a whole, which is widely used for starch milk dewatering in .potato starch,wheat starch,cassava starch and sweet potato sago starch project.
Features of vacuum filter
1. Fully stainless steel with no corrosion to the raw material;
2. Compact structure and nice design;
3. Speed of rotating drum can be adjusted according to actual site;
4. Material uploaded through blade, which is made of high rigid alloy and can be adjusted;
5. Lower energy consumption, smaller area.Than centrifuge;
6. Stable operation.
The working principle of vacuum filter

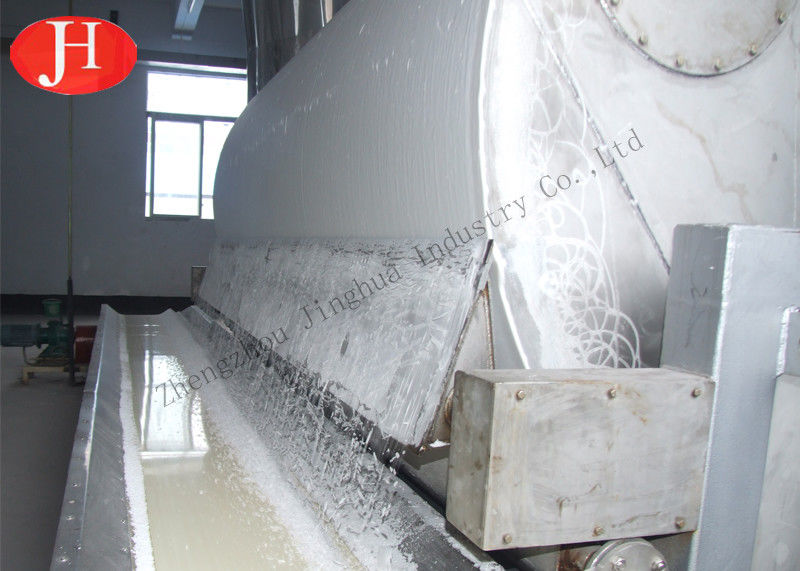

Rotary drum vacuum filter machine adopts vacuum suction method to achieve solid particles and liquid separation. Work, driven by speed regulating motor rotating the drum in the slurry tank, vacuum pump to produce vacuum inside the drum, under the action of pressure difference, material suspended solution over the surface of the drum forming uniform coating, when reaching a certain thickness from pneumatic scraper to starch, filtrate into the steam separator, so as to achieve the aim of starch, water, gas separation.
Main technical parameters
| Model | KLG12 | KLG20 | KLG24 | KLG34 |
| Vacuum degree(Mpa) | 0.04~0.07 | 0.04~0.07 | 0.04~0.07 | 0.04~0.07 |
| Content of solid(%) | ≥60 | ≥60 | ≥60 | ≥60 |
| Feeding density(Be°) | 16-17 | 16-17 | 16-17 | 16-17 |
| Capacity(t/h) | 4 | 6 | 8 | 10 |
| Power | 3 | 4 | 4 | 4 |
| Drum rotary speed(r/min) | 0-7.9 | 0-7.9 | 0-7.9 | 0-7.9 |
| Weight(kg) | 3000 | 4000 | 5200 | 6000 |
| Dimension(mm) | 3425x2312x2213 | 4775x2312x2213 | 4785x2630x2600 | 5060x3150x3010 |
Company Information
Zhengzhou jinghua industrial co., LTD., as a member of China starch industry association, was invited to attend the 2019 Shanghai international starch and starch derivatives exhibition. In this meeting, zhengzhou jinghua industry co., ltd. and the new and old customers in-depth meeting exchanges, for the future further cooperation to create a good beginning, to the whole industry to show the recent new research and development results, harvested from more peers and experts unanimously recognized.
Our Service
Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout.
Sale service
1. Recommending engineering conditions required for installation of the machine.
2. Communicating the manufacturing progress of machines with customer in time.
3. Project planning and design services.
After-sale service
1. Training of equipment maintenance and operating personally.
2. Installation and commissioning of equipment until everything is functional.
3. One year warranty and providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to serve machinery overseas.
