7.9r/Min Drum 4Kw Potato Starch Making Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | KLG12 KLG20 KLG24 KLG34 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Vacuum Filter | Customized: | Customized |
|---|---|---|---|
| Capacity: | 4-11 T/h | Application: | Potato Starch Milk Dehydrator Machine |
| Useful Life: | 20 Years | Drum Rotary Speed: | 0-7.9 R/min |
| Weight: | 6000 Kg | ||
| Highlight: | 4Kw Potato Starch Making Machine,7.9r/Min Drum Potato Starch Making Machine,Potato Starch Milk Dehydrator Machine |
||
Product Description

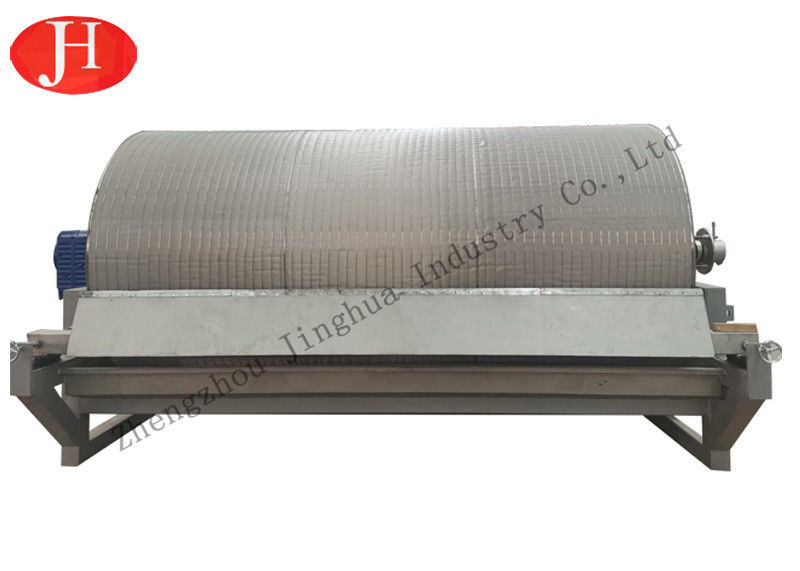

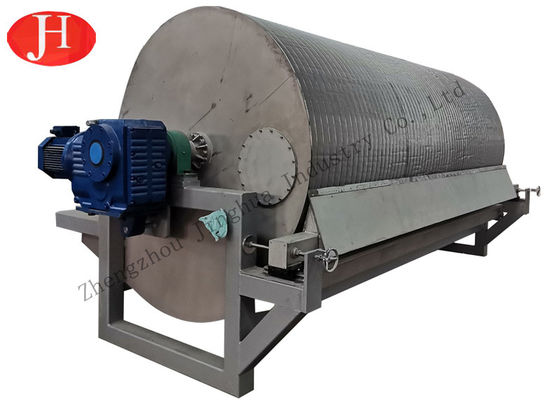

Customized 4 Kw Vacuum Filter Potato Starch Milk Water Separator Making Machine
Description of potato starch milk dehydrator plant
Vacuum filter combines the latest technology and years experience into a whole, which is widely used for starch milk dewatering in .potato starch,wheat starch,cassava starch and sweet potato sago starch project.
Main technical parameters
| Model | KLG12 | KLG20 | KLG24 | KLG34 |
| Vacuum degree(Mpa) | 0.04~0.07 | 0.04~0.07 | 0.04~0.07 | 0.04~0.07 |
| Content of solid(%) | ≥60 | ≥60 | ≥60 | ≥60 |
| Feeding density(Be°) | 16-17 | 16-17 | 16-17 | 16-17 |
| Capacity(t/h) | 4 | 6 | 8 | 10 |
| Power | 3 | 4 | 4 | 4 |
| Drum rotary speed(r/min) | 0-7.9 | 0-7.9 | 0-7.9 | 0-7.9 |
| Weight(kg) | 3000 | 4000 | 5200 | 6000 |
| Dimension(mm) | 3425x2312x2213 | 4775x2312x2213 | 4785x2630x2600 | 5060x3150x3010 |
Working principle
Rotary drum vacuum filter machine adopts vacuum suction method to achieve solid particles and liquid separation. Work, driven by speed regulating motor rotating the drum in the slurry tank, vacuum pump to produce vacuum inside the drum, under the action of pressure difference, material suspended solution over the surface of the drum forming uniform coating, when reaching a certain thickness from pneumatic scraper to starch, filtrate into the steam separator, so as to achieve the aim of starch, water, gas separation.
Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .
Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.
After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.
Our Certificate
Awarded the title of Advanced & High Technology Enterprise by Henan Science & Technology Department. Jinghua is the Vice president member of Sweet Potato Starch Professional Committee of China Starch Industry Association Units, the member of Potato Starch Professional Committee and the vice president member of China Food and Packaging Machinery Industry Association and Potato Food Processing Machinery Professional Committee Unit. Awarded the "ten years brilliant" honorary certificate issued by China international potato fair.
