10 T/H Airflow Dryer Potato Starch Making Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DG-3.2 DG-4.0 DG-6.0 DG-10.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Airflow Dryer | Useful Life: | 20 Years |
|---|---|---|---|
| Customized: | Customized | Energy: | Electric |
| Condition: | New | Capacity: | 10 T/h |
| Voltage: | 220V Or 380V | Line: | Potato Starch Processing Line |
| Highlight: | 10 T/H Potato Starch Making Machine,Potato Starch Airflow Dryer |
||
Product Description
Continuous Work Airflow Dryer Potato Starch Drying Making Machine Starch Production Line
Introduction of modified starch dry machine
Airflow dryer is widely used for powdery drying, and the humidity is controlled between 14% and 20%.
Main Features of airflow dryer
1. The whole system adopts automatic control.
2. Through measuring on feeding material moisture,or temperature difference between inlet and outlet,the feeding quantity and inlet steam volume can be automatic adjusted,thus the water content of product could reach the technology requirement.
3. This kind airflow dryer is not only suitable to all kinds potato kinds starch to be dried,but also adaptable to the drying of corn starch and wheat starch.
The working principle of airflow dryer

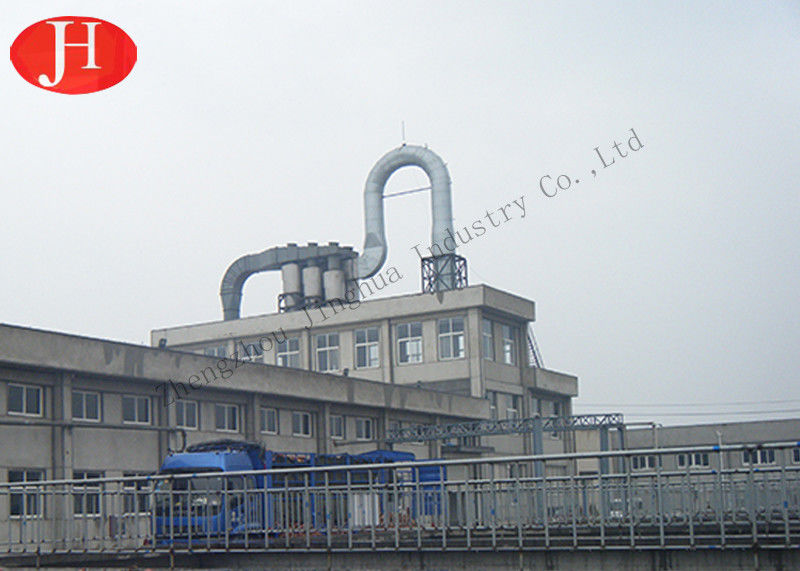

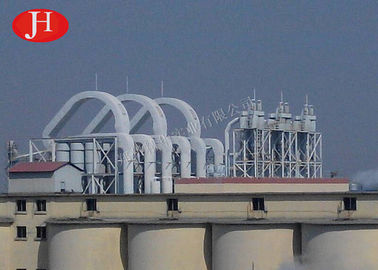

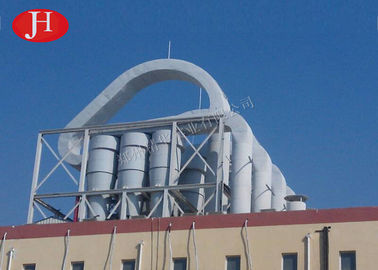

The cold air enters the radiator plate through the air filter, and the hot air flow after heating enters the dry air pipe. Meanwhile, the wet material enters the hopper of the feeding unit from the wet starch inlet, and is transported into the hoist by the feeding winch.The hoist rotates at high speed to drop the wet material into the dry duct, so that the wet material is suspended in the high speed hot air stream and heat is exchanged.After the material is dried, it enters the cyclone separator with the airflow, and the separated dry material is discharged by wind winding, and the finished product is screened and packed into the warehouse. And the separated exhaust gas, by the exhaust fan into the exhaust gas duct, into the atmosphere.
Main technical parameters
| Model | DG-3.2 | DG-4.0 | DG-6.0 | DG-10.0 |
| Output(t/h) | 3.2 | 4.0 | 6.0 | 10.0 |
| Power capacity(Kw) | 97 | 139 | 166 | 269 |
| Moisture of wet starch(%) | ≤40 | ≤40 | ≤40 | ≤40 |
| Moisture of dry starch(%) | 12-14 | 12-14 | 12-14 | 12-14 |
Our Service
Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout .
Sale service
1. Recommending engineering conditions required for installation of the machine.
2. Communicating the manufacturing progress of machines with customer in time.
3. Project planning and design services.
After-sale service
1. Training of equipment maintenance and operating personally.
2. Installation and commissioning of equipment until everything is functional.
3. One year warranty and providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to serve machinery overseas.
Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
