High Speed 4Kw Potato Starch Making Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | JHTB-5 JHTB-25 JHTB-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Automatic Potato Starch Packaging Machine | Line: | Potato Starch Processing Line |
|---|---|---|---|
| Weighing Ranges: | 5-50 Kg | Power: | 4 Kw |
| Dimension: | 3100*800*650 Mm | Weight: | 550 Kg |
| Useful Life: | 15 Years | Service: | Overseas Installation |
| Highlight: | 4Kw Potato Starch Making Machine,High Speed Potato Starch Making Machine |
||
Product Description
Computer Control Automatic Starch Package Machine Potato Starch Making Machine

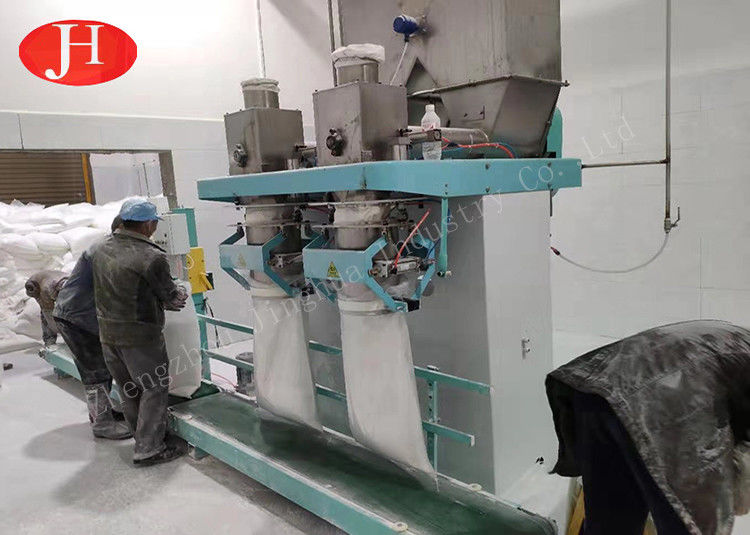

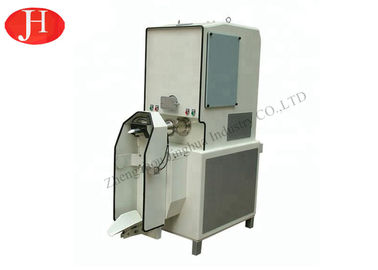

Description of automatic packaging machine
The main quantitative packing in the powdery material containing gas mixture material (such as waxy rice noodles, corn starch, potato starch, cassava starch, modified starch, gluten flour, dextrin).
Main features of automatic packaging machine
1. A fast, slow, speed, three speed feeding mode, AD processing technology with high speed, anti-interference technology, automatic error correction and compensation technology, accurate measurement, stable and reliable performance.
2. According to different characters of different materials, the pumping, the gas material of gas extraction, convenient packing and transportation and storage bags. Improve food shelf life.
3. For good fluidity material (such as starch) to take a special way of feeding, fast cutting flow system, to ensure that the measurement is accurate, stable and reliable performance.
4. Lift the bag structure to ensure that the packaging vertical fall into the conveyor, reduce labor intensity and improve the working environment.
Working principle of automatic packaging machine
The sensor of the packaging machine is subjected to the action of pressure to produce a micro - variable signal, which is processed by the computer. When the computer is activated by the external work signal, the feeder is controlled to feed the material quickly into the packaging bag. When the fast feeding ration is reached, the fast feeding is stopped, and the cylinder of the vibrating bag vibrates the packing material, and then the optimal feeding department is entered. When the set ration of slow feeding is reached (ration _ drop), stop the slow feeding and loosen the bag holder, etc. Such a cycle of work to achieve automatic quantitative packaging. Press the stop switch if you need to stop working.
Main technical parameters
| Specification | JHTB-5 | JHTB-25 | JHTB-50 |
| Weighing ranges(Kg) | 5~10 | 20~25 | 20~50 |
| Yield(packets/hour) | 150~600 | 150~500 | 300~400 |
| Dividing the value(g) | 5 | 10 | 10 |
| Power(Kw) | 4 | 4 | 4 |
| Package size(mm) | 1750*1000*2200 3100*800*650 |
1750*1000*2200 3100*800*650 |
1750*1000*2200 3100*800*650 |
| Total weight(kg) | 550 | 550 | 550 |
Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .
Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.
After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.
