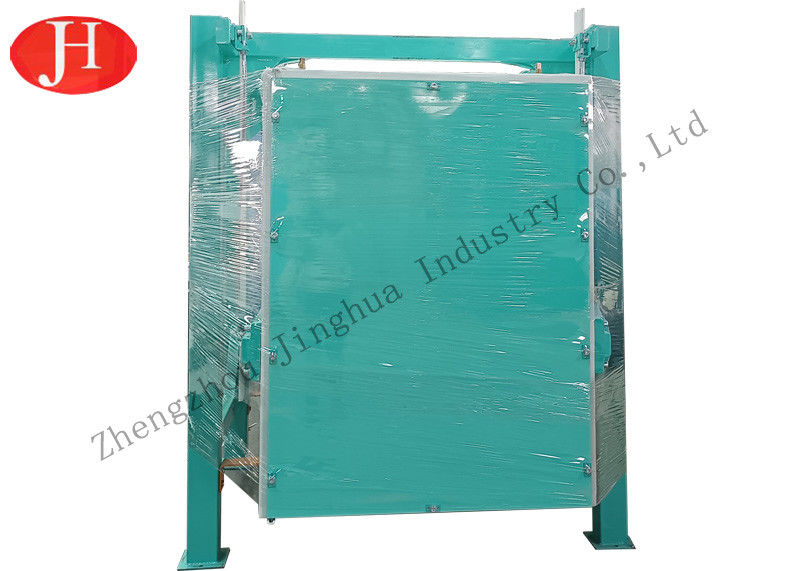

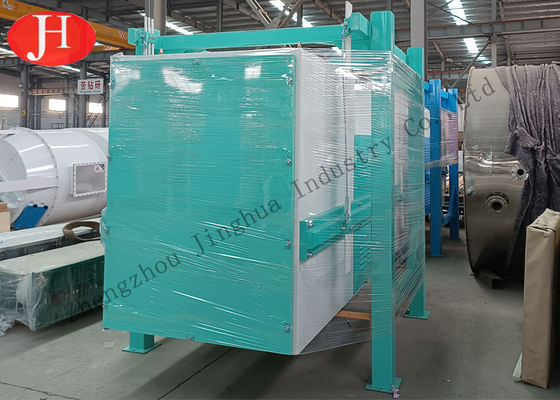

Check Sifter Grading Cassava Flour Processing Equipment
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | GDSF2*10*100 GDSF2*10*83 GDSF1*10*83 GDSF1*10*100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Full Closed Flour Sifter | Customized: | Customized |
|---|---|---|---|
| Dimension: | 2120*1440*2120 Mm | Capacity: | 4-11 T/h |
| Useful Life: | 20 Years | Service: | Overseas Installation |
| Machine: | Cassava Flour Sifter Machine | Power: | 1.5 Kw |
| Highlight: | Grading Cassava Flour Processing Equipment,Check Sifter Cassava Flour Equipment,11t/h Cassava Flour Equipment |
||
Product Description
Full Closed Cassava Flour Check Sifter Grading Machine Cassava Flour Production Line
Description of cassava flour sifter machine
MFSC and MBSC twin sifter utilized as a final check (security) sifter before flour is sent to flour storage or packing machine to ensure bran particles or particles bigger that flour particles are removed.It is widely used for sieving dry starch before starch packing in corn starch, cassava starch, potato starch and sweet potato starch and wheat starch sago starch processing project.
Main technical parameters
| Model |
Bin (Piece) |
Number of sieves (piece) |
Capacity (t/h) |
Diameter (mm) |
Power (Kw) |
Weight (kg) |
Dimension (mm) |
| GDSF2*10*100 | 2 | 10-12 | 8-10 | Φ45-55 | 2.2 | 1200-1500 | 2530x1717x2270 |
| GDSF2*10*83 | 2 | 8-12 | 5-7 | Φ45-55 | 1.5 | 730-815 | 2120x1440x2120 |
| GDSF1*10*83 | 4.5 | 2-3 | 3-4 | Φ40 | 0.75 | 600 | 1380x1280x1910 |
| GDSF1*10*100 | 6.4 | 3-4 | 4-5 | Φ40 | 1.5 | 750 | 1620x1620x1995 |
| GDSF1*10*120 | 7.6 | 4-5 | 5-6 | Φ40 | 1.5 | 950 | 1890x1890x2400 |
Working principle
The machine is composed of two main parts: the mild steel frame mounted with clamps for the flexible suspension rods, floor plates for mounting and the mild steel box section for the sieve frames with upper clamping by means of a metal frame and clamping pressure micrometric screws.
The drive unit with counter balance weight, with motor, pulleys, v-belt is mounted under the cabinet box section, adjustable to suit different applications. Material is fed into the top and by the machines circular motion, the fine material moves through the sieve mesh and is discharged out each sieve side to outlets, while the course material over tails and sent to separate outlets.
Our Certificate
The Key Technology And Equipment Of Potato Raw Whole Powder Processing and Study On Anti-browning Technology And Equipment Of Potato Flour Of Zhengzhou jinghua Industrial Co., LTD Have Obtained The Scientific And Technological Achievement Evaluation Certificate Issued By The Chinese Cereals And Oils Association.
Our Advantages
Zhengzhou Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory,Can ensure the processing and delivery cycle,engineering and technical personnel more than 30 people, can provide installation services overseas and custom product for you.Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.Can provide high quality products for you.
Our Factory
Our Workshop
