SS HRC60 Rasping 2100r/Min Potato Starch Machine Multifunction
Product Details:
| Place of Origin: | Henan |
| Brand Name: | JingHua |
| Model Number: | rasper |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 3000*1590*1500 mm |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/P, D/A, Western Union, T/T, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Product Name: | Potato Starch Making Machine | Application: | Potato Mill Machine |
|---|---|---|---|
| Material: | Steel Stainless | Operation: | Automatic |
| Energy: | Electric | Function: | Multifunction Flour Grinder |
| Type: | Food Processing Machine | Useful Life: | 20 Years |
| Highlight: | 2100r/Min Potato Starch Machine,HRC60 Rasping Potato Starch Machine,Multifunction Rasping Potato Starch Machine |
||
Product Description

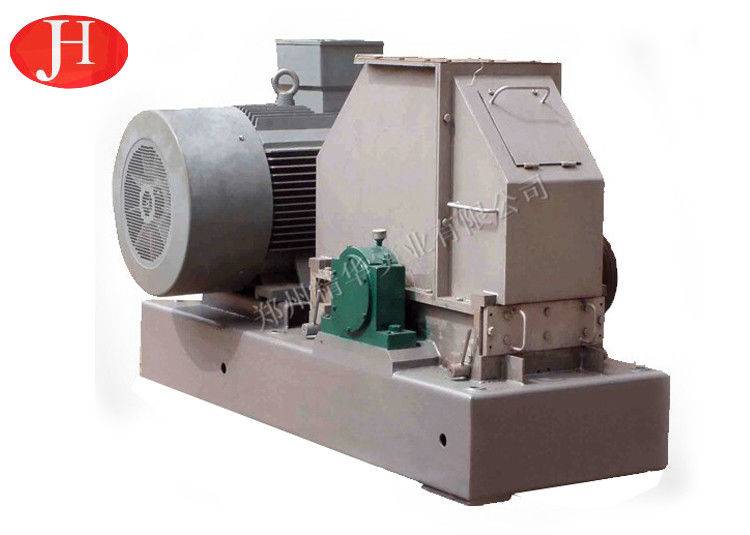

Machine Easy Operation Rasper For Potato Starch Making Machine
Potato starch is mainly stored in the fleshy part of the root, the raw material particles are relatively large, the internal organization is not easy to destroy, the use of repeated file grinding, fully destroy the potato block structure, can make the small starch particles can be successfully free from the root, improve the extraction rate of starch.
Main technical parameters
Model | DCM8435 | DCM8450 | DCM8465 | DCM1070 |
Main shaft rotating speed(r/min) | 2100 | 2100 | 2100 | 1470 |
Drum diameter(mm) | Φ840 | Φ840 | Φ840 | Φ1100 |
Drum width(mm) | 350 | 500 | 650 | 700 |
Power (Kw) | 110 | 160 | 200 | 250 |
Capacity(t/h) | 20-23 | 30-33 | 35-40 | 40-45 |
Dimension(mm) | 2170x1260x1220 | 2170x1385x1250 | 2170x1650x1380 | 3000x1590x1500 |
Advantages of rasper
1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.
2. High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.
3. Rotor is calibrated with international advanced dynamic-balance instrument, meeting G1 standard.
4. Components(bearings for example) are imported from Europe with longer service life
5. Unique sieve-tension gear makes disassembly easy.
6. Saw Blade is manufactured with special steel by special process, with higher hardness and wear resistance.
7. Rasping bulk is cast of high-chromium iron, hardness reaching HRC60, having excellent wear resistance.
8. Unique drum groove and layering instrument design benefits saw blade changing.
The working principle of rasper
The material enters into the body of the file mill shell through the upper entrance, and is broken by the impact, shear and grinding effect of the saw blade moving at high speed. The lower part of the rotor is equipped with a screen screen. The material smaller than the size of the screen hole is discharged through the screen plate, and the particles larger than the size of the screen hole are blocked and remain on the screen plate to continue to be hit and grinder by the saw blade.
Real application case
There are four steps to making potato starch
1.Cleaning:To remove the stone sand and from the raw material ,and peel it.
2.Crushing :To destroys the fiber structure and makes the starch particles free.
3.Separator:To removing sand ,mud from starch slurry, degreasing, microslag separation, protein separation, washing and concentration of all kinds of starch and modified starch emulsion.
4.Drying and Packing:To dehydrator the wet starch, sifter and packaged.
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .
Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.
After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.
Packing : Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
Q1:Can you provide detailed parameters and drawings of the equipment?
A:Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.
Q2:How long is the warranty period of the equipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.
Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.
Q4:Are your products can be assured ?
A:Our machines are all have CE certificate by SGS, TUV.
Q5:If we show you our layout of factory, can you help us to design the whole process line?
A :Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
