Large Capacity Automatic Rasper Cutting Machine 840mm For Cassava Starch Processing
Product Details:
| Place of Origin: | Henan |
| Brand Name: | JingHua |
| Model Number: | Rasper Cutting Machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 3000*1490*1500 mm |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/P, D/A, Western Union, T/T, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Product Name: | Rasper Machine | Application: | Food Flour Grinding Mill Machine |
|---|---|---|---|
| Processing: | Full-automatic Milling Machine | Processing Type: | Cleaning-milling-packing |
| Function: | Multifunction | Final Products: | Super Fine Flour |
| Usage: | Powder Milling | Feature: | Easy Operation |
| Highlight: | Cassava Starch Automatic Rasper Cutting Machine,Cassava Starch Processing Rasper Cutting Machine,840 mm Starch Rasper Cutter |
||
Product Description

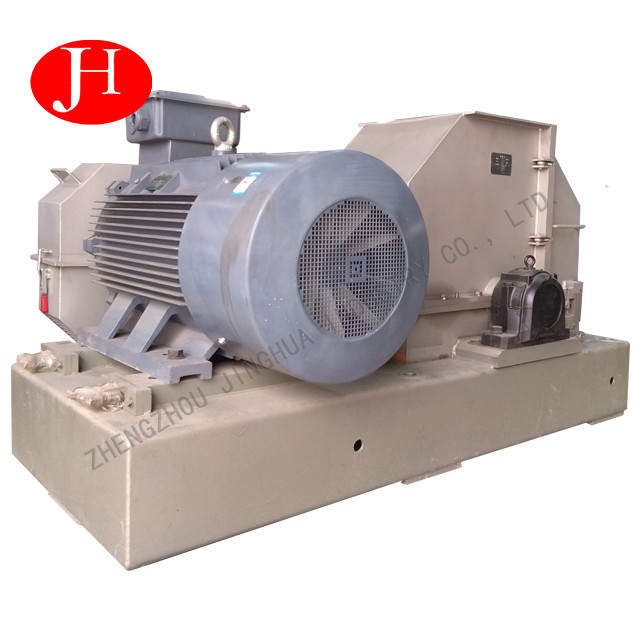

Large Capacity Automatic Rasper Cutting Machine For Cassava Starch Processing
Rasper is our company's high-tech products and patented technology products.The rasper breaks the raw material at a high speed, destroys the
fiber structure and makes the starch particles free.Widely used in potato starch and cassava starch processing to crash and rasp raw materials.
Features:
1. All parts in contact with raw materials are made of food-grade stainless steel to protect materials from external pollution.
2. High speed, fast linear speed, good abrasive performance, uniform particle, high starch ionization rate.
3. The rotor is calibrated by international advanced dynamic balance instrument, in line with G1 standard.
4. parts (such as bearings) imported from Europe, longer service life
5. Unique sieving gear makes disassembly easy.
6. The saw blade is made of special steel and processed by special process, which has high hardness and wear resistance.
7. The casting is made of high chromium cast iron, with hardness up to HRC60 and excellent wear resistance.
8. Unique drum groove and layered instrument design, conducive to saw blade replacement.
Main technical parameters
|
Model |
DCM8435 |
DCM8450 |
DCM8465 |
DCM1070 |
|
Main shaft rotating speed(r/min) |
2100 |
2100 |
2100 |
1470 |
|
Drum diameter(mm) |
Φ840 |
Φ840 |
Φ840 |
Φ1100 |
|
Drum width(mm) |
350 |
500 |
650 |
700 |
|
Power(Kw) |
110 |
160 |
200 |
250 |
|
Capacity(t/h) |
20-23 |
30-33 |
35-40 |
40-45 |
|
Dimension(mm) |
2170x1260x1220 |
2170x1385x1250 |
2170x1650x1380 |
3000x1590x1500 |
Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout .
Sale service
1. Recommending engineering conditions required for installation of the machine.
2. Communicating the manufacturing progress of machines with customer in time.
3. Project planning and design services.
After-sale service
1. Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3. One year warranty and Providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to service machinery overseas.
FAQ
Is your company a factory or a trading company?
A: Our company is a factory in Henan Province with export license. We have been engaged in the export business for more than 20 years.
Q2. What is your main line of business?
A: Zhengzhou Jinghua is a company specializing in starch processing machinery. Starch processing production line, such as: cassava starch
production line, cassava flour production line, potato starch production line, sweet potato production line, wheat starch production line, sago
production line, garri production line
Where is your factory located? How can I get there?
A: Our address: Intersection of Zhengyun Road and Guanggu Road, Guangwu Town, Zhengzhou City, Henan Province, China.
Warmly welcome your presence!
Can you trust your product?
A: Our machines have passed ISO9001:2001 quality management system certification, and passed SGS, TUV CE certification.
If we show you the layout of the factory, can you help us design the entire production line?
A: Yes, our experienced engineers and technicians can help you arrange the layout and installation of the entire process line according to your
actual situation.
If we have a sample of the new product, can you help us analyze and design the machine?
A: Yes, our technical department can help you analyze, design and test your new products.
