High Efficiency Cassava Flour Processing Equipment Rasper Cassava Grinding Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DCM8435 DCM8450 DCM8465 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 14-30 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Application: | Cassava Grinding Machine | Voltage: | 220V Or 380V |
|---|---|---|---|
| Energy: | Electric | Rotating Speed: | 2100 R/min |
| Capacity: | 20-45 T/h | Power: | 160 Kw |
| Useful Life: | 15 Years | Installation: | Yes |
| High Light: | cassava flour milling machine,cassava flour making machine |
||
Product Description
High Efficiency Rasper Cassava Flour Grinding Processing Equipment
Product Description
Resper is the our company's high-tech products and patented technology products.It breaks the raw material at a high speed, destroys the fiber structure and makes the starch particles free.
Main Features of Rasper
1. Specical slot design to replace the assembly of saw blades quickly.
2. Sperical side of saw blade can be used.
3. Both side of saw blade can be used.
4. Observation window to inspect running situation of saw blades.
Main Technical Parameters
| Model | DCM8435 | DCM8450 | DCM8465 | DCM1070 |
| Rotating speed(r/min) | 2100 | 2100 | 2100 | 1470 |
| Drum diameter(mm) | Φ840 | Φ840 | Φ840 | Φ1100 |
| Drum width(mm) | 350 | 500 | 650 | 700 |
| Power (Kw) | 110 | 160 | 200 | 250 |
| Capacity(t/h) | 20-23 | 30-33 | 35-40 | 40-45 |
| Dimension(mm) | 2170x1260x1220 | 2170x1385x1250 | 2170x1650x1380 | 3000x1590x1500 |

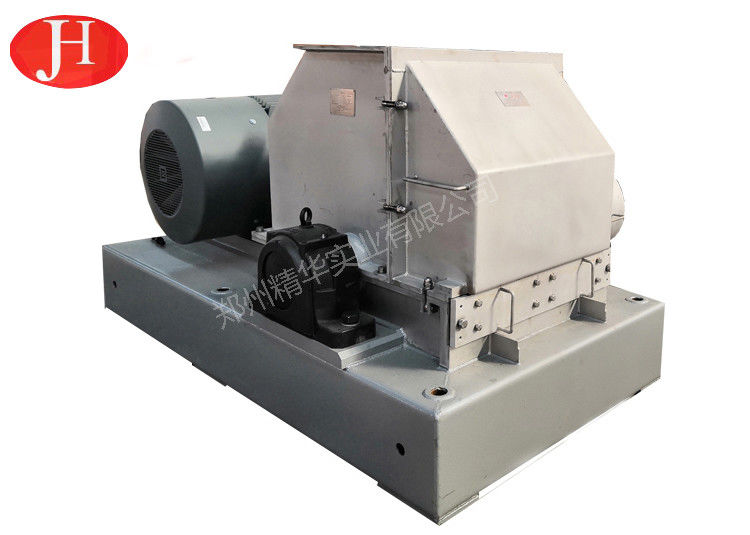

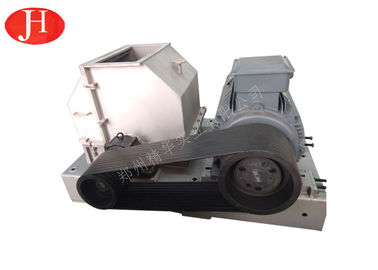

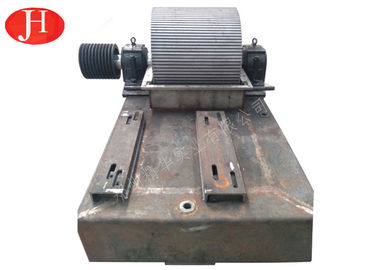

Product Show
Our Service of Rasper
Pre-sale service
1. Accept customer consultation and customize products according to customer requirements.
2. Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.
Sale service
1. The company sent technical personnel to the scen of the on-the -spot guidance equipment installation,debugging and training operators.
2. If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.
After-sale service
1. Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2. If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3. Products purchased in our company, we provide one-year warranty and lifelong maintenance service.
