20 T/H Crusher Cassava Flour Processing Equipment
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DPS5050 DPS5076 DPS50100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Top Level Crusher | Line: | Cassava Flour Processing Line |
|---|---|---|---|
| Energy: | Electric | Warranty: | 12 Months |
| Condition: | New | Diameter Of Rotor: | 480 Mm |
| Capacity: | 20 T/h | Service: | Overseas Installation |
| Highlight: | 20 T/H cassava crusher,cassava flour milling machine |
||
Product Description

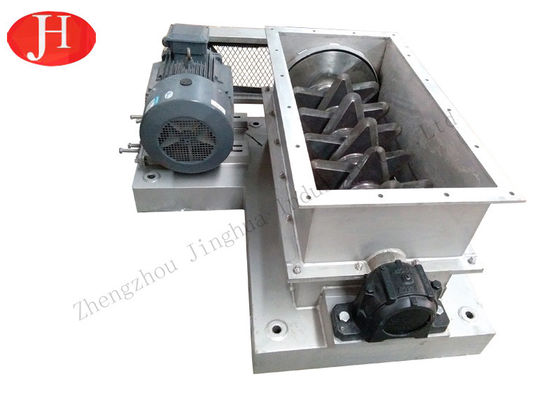

Cassava Flour Processing Equipment Stainless Steel Crusher Cassava Cutting Milling Machine
Description of cassava cutting machine
Zhengzhou Jinghua Industry Crusher is newly designed with compact structure, easy disassembly and low maintenance cost. The machine is widely used for cracking big materials. The raw material is usually fresh cassava tube, fresh sweet potato and after crushing you can get the finished product with a 20-30mm size. It is a precrushing.
Main features of cassava cutting machine
1. In dependent research and development,integrate with the same kind so fequipment performance from local and abroad manufactures, and combined with our many years useing esperience.
2. Newly designed with compact structure,easy disassembly and low maintenance cost.
3. Small volumes with large capacity,medium speed,low energy consumption and steady operation.
4. To avoid duplication of material cutting and improvge cutting ability.Blade is sepcially made and is durable.
5. Parts contact with material are made of stainless steel,to ensure materials not contaminated.
6. The machines is widely used for cracking of big material.
Working principle

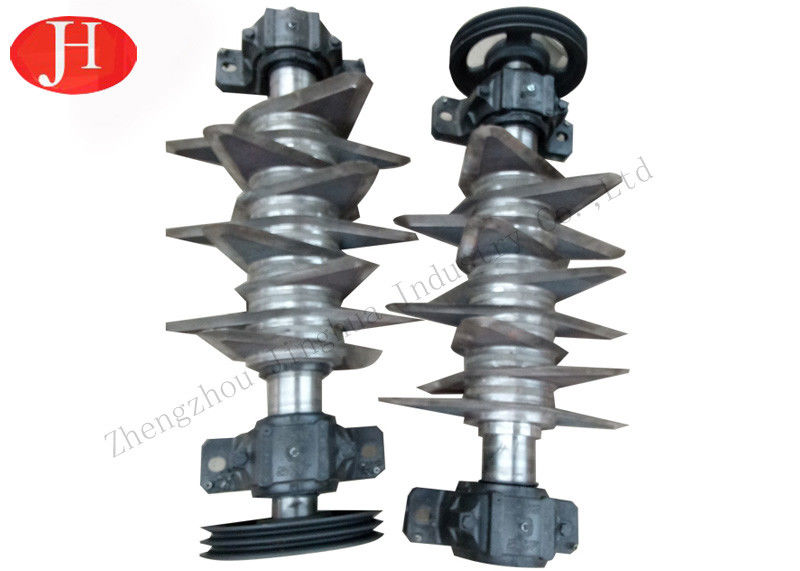

The main working part of the crusher is a rotary table with a blade. The rotary table is composed of a spindle and a rotary table.The motor drives the rotary table to rotate at a medium speed in the slicing chamber, and the material enters from the upper feeg port,the upper part of the rotary knife is sheared by the rotary blade and is discharged at the lower part of the rotary knife.
Main technical parameters
| Model |
Diameter of rotor (mm) |
Speed of rotor (r/min) |
Blade Number |
Rotor length (mm) |
Power (Kw) |
Dimension (mm) |
Weight (Kg) |
Capacity (t/h) |
| DPS5050 | Φ480 | 1200 | 9 | 550 | 7.5/11 | 1030x1250x665 | 650 | 10-15 |
| DPS5076 | Φ480 | 1200 | 11 | 760 | 11/15 | 1250x1300x600 | 750 | 15-30 |
| DPS50100 | Φ480 | 1200 | 15 | 1000 | 18.5/22 | 1530x1250x665 | 900 | 30-50 |
| DPS60100 | Φ580 | 1200 | 15 | 1000 | 30/37 | 1530x1400x765 | 1100 | 60-80 |
Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.
Q2.What is your main business?
A: ZZJH is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line
Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements
Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
