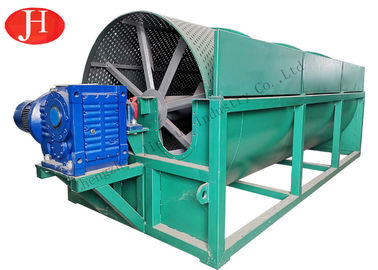

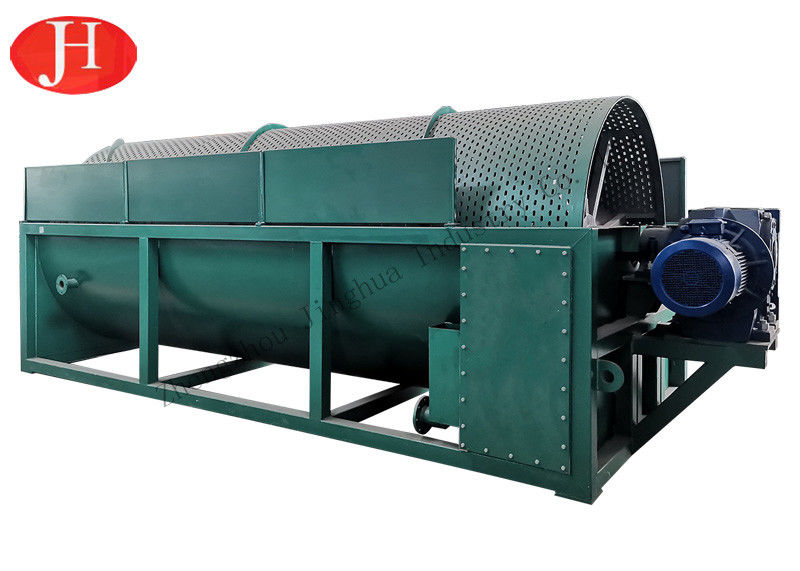

30Kw Rotary Washer 20T Potato Starch Making Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | DQXJ190x450 DQXJ190x490 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Product Name: | Rotary Cleaning Machine | Material: | Stainless Steel |
|---|---|---|---|
| Dimension: | 6110*2340*2170 Mm | Service: | Overseas Installation |
| Condition: | New Condition | Power: | 30Kw |
| Drum Diameter: | 1905 Mm | Weight: | 6000 Kg |
| High Light: | 20T Potato Starch Making Machine,30Kw Potato Starch Making Machine,Potato Starch Rotary Cleaning Machine |
||
Product Description
1 Year Warranty Rotary Washer 20 T Potato Starch Cleaning Washing Making Machine
Introduction of potato washing machine
Rotary drum washer is applied to wash potatoes, cassavas, sweet potatoes and etc. Rotary washer is the washing section machine in starch processing line and it adopts the principle of counter current to clean out mud, sand and small stones effectively.
Advantages of rotary washing machine
1. Combining the latest technology and years’ experience into a whole.
2. Adopting method of counter current washing, excellent washing result, mud and sand removing.
3. Reasonable feeding structure. The damage rate of raw material is under 1% and this can ensure high starch extraction yield.
4. Compact design, big capacity, energy and water saving.
5. Stable operation and rational motor equipped.
6. Easy to installation and maintenance.
Main technical parameters
|
Model
|
Drum diameter (mm) |
Drum length (mm) |
Capacity (t/h) |
Power (Kw) |
Dimension (mm) |
Weight (Kg) |
| DQXJ190x450 | Φ1905 | 4520 | 20-25 | 18.5 | 5400x2290x2170 | 5200 |
| DQXJ190x490 | Φ1905 | 4920 | 30-35 | 22 | 5930x2290x2170 | 5730 |
| DQXJ190x490 | Φ1905 | 4955 | 35-50 | 30 | 6110x2340x2170 | 6000 |
Working principle
The washing machine is designed with counter-current washing, that is, the washing water enters the washing machine from the material outlet. The material enters into the rotating drum and is cleaned in the tumbling collision. Meanwhile, the material's skin is effectively removed. The cleaned sediment skin falls between the drum and the inner wall of the water tank through the mesh, moves forward under the push of the blades, and is discharged through the overflow tank.
Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
Introduction of company
Zhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation in China. Depending on the unique advantage and strong strength of Henan University of Technology, Jinghua combines scientific research, industry and trade as a whole, which mainly engaged in the working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc. to all kinds starch processing. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.
