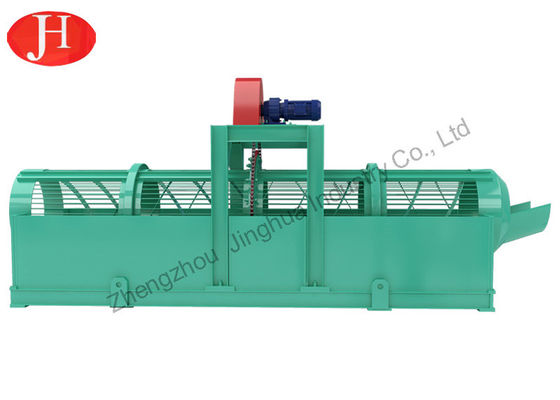

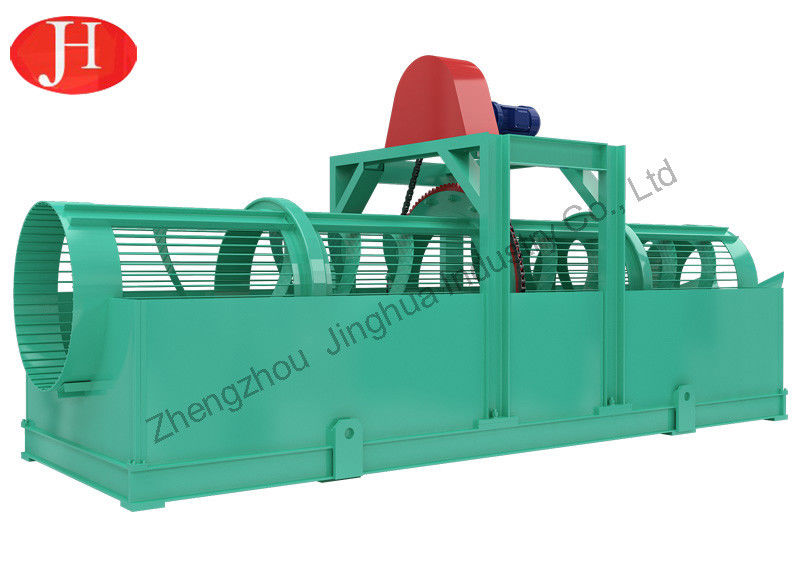

Dry Sieve Desand Potato Starch Cage Cleaning Machine
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | GS120 GS100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Cage Cleaning Machine | Useful Life: | 20 Years |
|---|---|---|---|
| Application: | Potato Dry Sieve Equipment | Machine: | Potato Starch Making Machine |
| Material: | Stainless Steel | Dimension: | 7000*2150*1780 Mm |
| Capacity: | Customized | ||
| Highlight: | Potato Starch Cage Cleaning Machine,Potato Starch Dry Sieve,Potato Starch Desand Machine |
||
Product Description
Potato Starch Making 3500 Kg Cage Cleaning Machine Potato Dry Sieve Desand Plant
1.Description of potato starch making machine
Cage washer is mainly used for dry sieving before potato cleaning,Stone removal effect is good, can effectively save water in the cleaning process.Widely used in sweet potato starch, canna starch, cassava starch, potato starch production lines.
Advantages of cage cleaning machine
1.Fully stainless steel to be sure there is no corrosion
2. Inner spiral is adopted to guide material which going under the pushing.
3. Simple structure low power consumption, big capacity, well cleaning result
4. Stable operation and low damage to be profitable for starch extraction.
Main technical parameters
| Model |
Drum diameter (mm) |
Drum speed (r/min) |
Drum lenght (mm) |
Power (Kw) |
Weight (kg) |
Capcity (t/h) |
Dimension (mm) |
| GS100 | 1000 | 18 | 4000-6500 | 5.5/7.5 | 2800 | 15-20 | 4000*2200*1500 |
| GS120 | 1200 | 18 | 5000-7000 | 7.5 | 3500 | 20-25 | 7000*2150*1780 |
There are four steps to making starch
1.Cleaning:To remove the stone sand and from the raw material ,and peel it.
2.Crushing :To destroys the fiber structure and makes the starch particles free.
3.Separator:To removing sand ,mud from starch slurry, degreasing, microslag separation, protein separation, washing and concentration of all kinds of starch and modified starch emulsion.
4.Drying and Packing:To dehydrator the wet starch, sifter and packaged.
2.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .
Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.
After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.
3.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
