Drying Four Bin Full Closed Cassava Flour Sifter
Product Details:
| Place of Origin: | Zhengzhou City,China |
| Brand Name: | JINGHUA |
| Certification: | CE |
| Model Number: | GDSF2*10*100 GDSF2*10*83 GDSF1*10*83 GDSF1*10*100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10 sets/month |
|
Detail Information |
|||
| Product Name: | Full Closed Flour Sifter | Customized: | Customized |
|---|---|---|---|
| Application: | Cassava Flour Drying Equipment | Useful Life: | 20 Years |
| Power: | 2.2 Kw | Weight: | 1500 Kg |
| Service: | Overseas Installation | Dimension: | 2530*1717*2270 Mm |
| Highlight: | Full Closed Cassava Flour Sifter,Four Bin Cassava Flour Sifter,Drying Cassava Flour Sifter |
||
Product Description

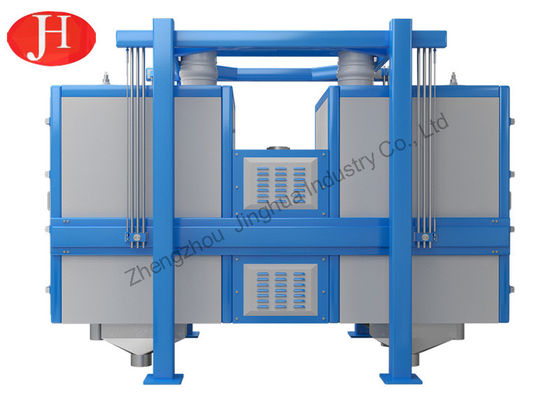

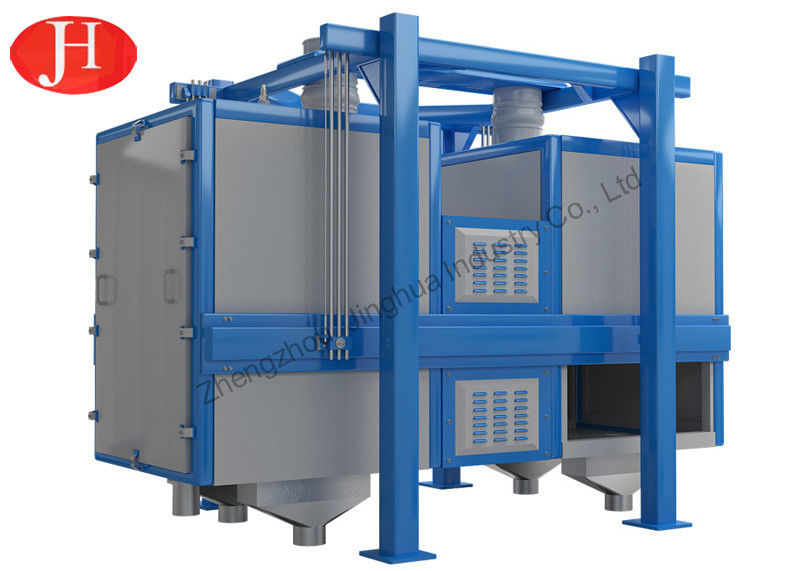

Four Bin Full Closed Flour Sifter Fiber Separator Cassava Flour Processing Equipment
Description of cassava flour sifter machine
MFDC check sifter utilized as a final check (security) sifter before flour is sent to flour storage or packing machine to ensure bran particles or particles bigger that flour particles are removed. Machine can also be used for corn, feed and rice industries.
Advantages of flour sifter
1. Long sieving roadSmall occupying space
2. High efficiency and large capacity
3. Energy saving and stable operation;Easy maintenance
4. Shifter screen is varied 40-120 mesh according to different material.
5. Shifter screen material is stainless steel
6. Shifter frame can be made of carbon steel or stainless steel
Main technical parameters
| Model |
Bin (Piece) |
Number of sieves (piece) |
Capacity (t/h) |
Diameter (mm) |
Power (Kw) |
Weight (kg) |
Dimension (mm) |
| GDSF2*10*100 | 2 | 10-12 | 8-10 | Φ45-55 | 2.2 | 1200-1500 | 2530x1717x2270 |
| GDSF2*10*83 | 2 | 8-12 | 5-7 | Φ45-55 | 1.5 | 730-815 | 2120x1440x2120 |
| GDSF1*10*83 | 4.5 | 2-3 | 3-4 | Φ40 | 0.75 | 600 | 1380x1280x1910 |
| GDSF1*10*100 | 6.4 | 3-4 | 4-5 | Φ40 | 1.5 | 750 | 1620x1620x1995 |
| GDSF1*10*120 | 7.6 | 4-5 | 5-6 | Φ40 | 1.5 | 950 | 1890x1890x2400 |
Working principle
The machine is composed of two main parts: the mild steel frame mounted with clamps for the flexible suspension rods, floor plates for mounting and the mild steel box section for the sieve frames with upper clamping by means of a metal frame and clamping pressure micrometric screws.
The drive unit with counter balance weight, with motor, pulleys, v-belt is mounted under the cabinet box section, adjustable to suit different applications. Material is fed into the top and by the machines circular motion, the fine material moves through the sieve mesh and is discharged out each sieve side to outlets, while the course material over tails and sent to separate outlets.
