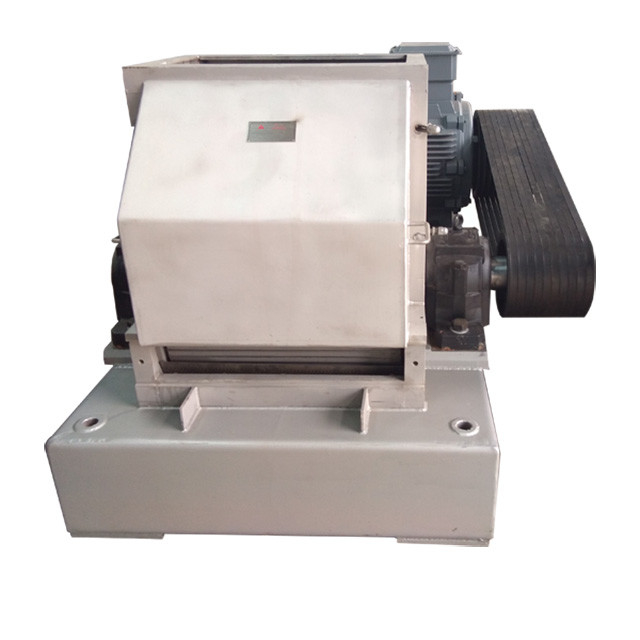

Stainless Steel Rasper Cutting Machine For Cassava Starch Processing Multifunction
Product Details:
| Place of Origin: | Henan |
| Brand Name: | JingHua |
| Model Number: | Rasper |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 3000*1490*1500 mm |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/P, D/A, Western Union, T/T, MoneyGram |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Product Name: | Rasper Cutting Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material: | Stainless Steel | Function: | Multifunction |
| Price: | Negotiable | Raw Material: | Cassava |
| Type: | Food Processing Machine | Feature: | Easy Operation |
| Highlight: | Rasper Cutting Machine For Cassava Starch,stainless steel Starch Rasper Cutting Machine,Multifunction Starch Rasper Cutting Machine |
||
Product Description
Introduction of sweet potato grinder machine
Rasper is our company's high-tech products and patented technology products.The rasper breaks the raw material at a high speed, destroys the
fiber structure and makes the starch particles free.Widely used in potato starch and cassava starch processing to crash and rasp raw materials.
Key Technology & Innovation Potions
1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.
2. High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.
3. Rotor is calibrated with international advanced dynamic-balance instrument, meeting G1 standard.
4. Components(bearings for example) are imported from Europe with longer service life
5. Unique sieve-tension gear makes disassembly easy.
6. Saw Blade is manufactured with special steel by special process, with higher hardness and wear resistance.
7. Rasping bulk is cast of high-chromium iron, hardness reaching HRC60, having excellent wear resistance.
8. Unique drum groove and layering instrument design benefits saw blade changing.
Main technical parameters
|
Model |
DCM8435 |
DCM8450 |
DCM8465 |
DCM1070 |
|
Main shaft rotating speed(r/min) |
2100 |
2100 |
2100 |
1470 |
|
Drum diameter(mm) |
Φ840 |
Φ840 |
Φ840 |
Φ1100 |
|
Drum width(mm) |
350 |
500 |
650 |
700 |
|
Power(Kw) |
110 |
160 |
200 |
250 |
|
Capacity(t/h) |
20-23 |
30-33 |
35-40 |
40-45 |
|
Dimension(mm) |
2170x1260x1220 |
2170x1385x1250 |
2170x1650x1380 |
3000x1590x1500 |
pre-sale service
1. Introduce the characteristics and application of the product to the customer in detail.
2. Choose economical and practical machines for customers.
3. Provide the operating data of the relevant machines.
4. Provide customers with trial operation methods.
5. Flow chart and factory design layout.
Sales service
1. Recommend the engineering conditions required to install the machine.
2. Communicate with customers on the progress of machine manufacturing in time.
3. Project planning and design services.
After-sales service
1. Personally train equipment maintenance and operation.
2. Installation and debugging of equipment until everything is normal.
3. One year warranty and provide long-term maintenance service and spare parts.
4. Provide technical support for customers to develop new products.
5. Engineers who can repair machinery overseas.
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.
Q2.What is your main business?
A: Zhengzhou jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava
flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line
Q3:Where is your factory located? How can I visit there?
A: Our add: Zhengyun Road and Guanggu Road intersection , Guangwu Town , Zhengzhou City , Henan Province , China.
Warmly welcome to visit us!
Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on
your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
